• 18 Pcs    9.84 Ft Truss Segment
• 4 Pcs    3.28 Ft Truss Segment
• 4 Pcs    Rigger Base, with extending legs
• 16 Pcs   3' Outrigger Brace Tubes  with clamps
• 4 Pcs    Sleeve Block 4-Way Junction box
• 4 Pcs    Truss Top with I-Beam mount with chain Pulley wheels
• 16 Pcs     Hinge block set
• 2 Sets   Pair of 1 Ton Manual Chain Hoists W/30 Ft (9 M) Chain

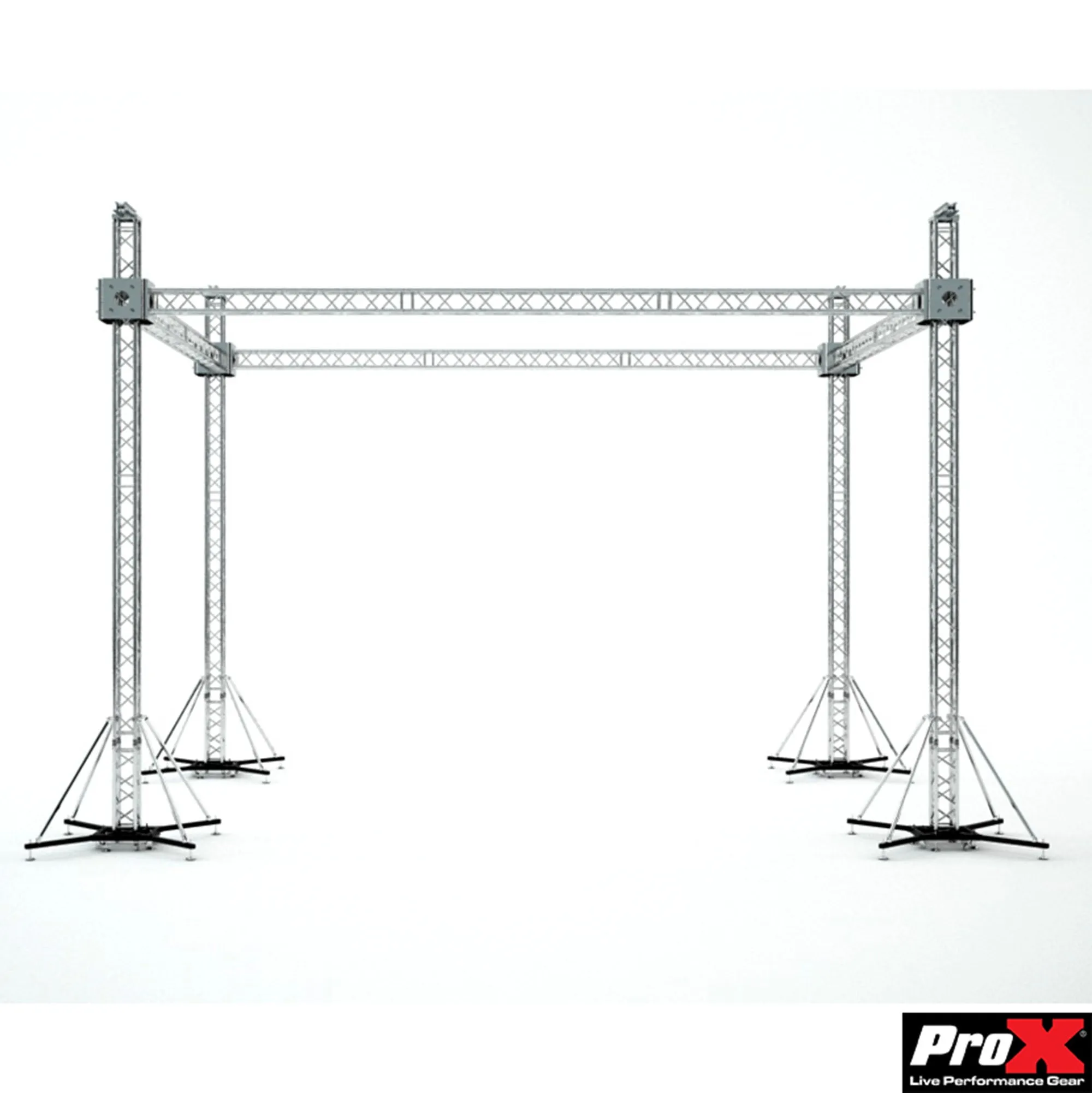

ProX XT-SQ series trussing is a rugged and durable trussing package solution.  Perfect for live outdoor or indoor productions, exhibitions,  as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of , , and that allow limitless design configurations to suit your needs.  Always consult an engineer for complex designs!

ProX XT-SQF34 2MM SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb/9,5kg per 3.28 ft / 1 meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm

IMPORTANT:  Always know your load weight for your equipment:

• Manufactured to Exacting Specifications in our Own Factory!
• Tolerance Free Standard Conical Connectors
• Truss Main Tube Wall Thickness of .08in / 2mm
• Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
• Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
• TUV Certified Aluminium/Steel Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.

Package Contents

• (18)   9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
• (4)   Top Truss Section for Electric Motor or Manual Chain Hoist
• (4)   Ground Support Sleeve Block for F34 Truss Segment Systems
• (16)   Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
• (4)   3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
• (4)   Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
• (16)   3 Ft. Outrigger Brace for Ground Support Truss Tower
• (2)   Pair 1 Ton Manual Chain Hoist W/30 Ft (9 M) Chain for Stage Truss
