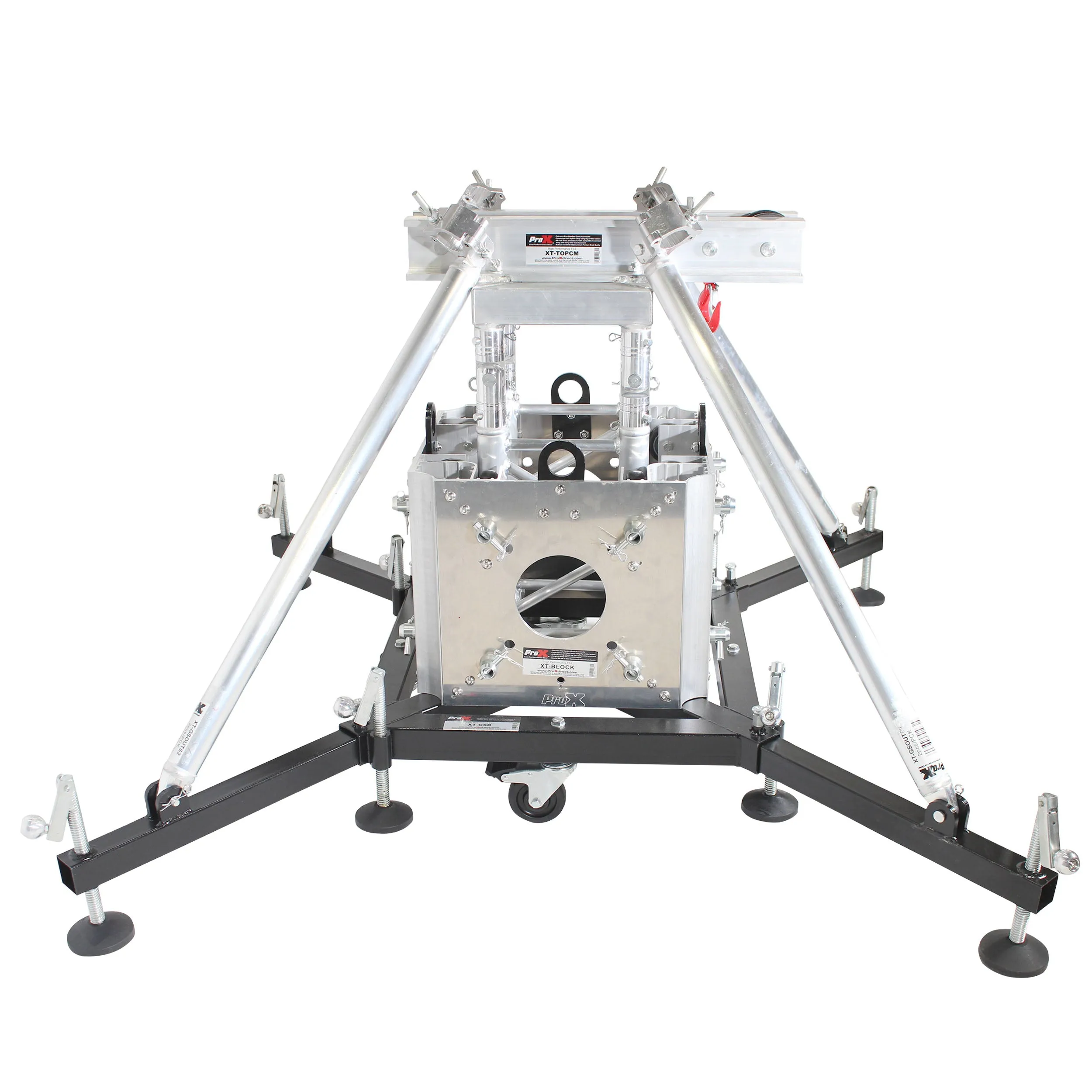

The ProX XTP-GSBPACK164 is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 1.64' long square Truss. Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. You get:
- Rigger Base, with extending legs
- 1.64 ft Long Truss segment (Longer segments available separately)
- 3 3' Outrigger Brace Tubes (4) with clamps
- Sleeve Block 4-Way Junction box
- Truss Top with I-Beam mount with chain Pulley wheels
- 4 Hinge block set
- (Lift Hoist NOT included)
ProX Trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of including , hanging & lifting points, spacers, box corners, mounting poles, and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs!
ProX XT-SQF34 2MM SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb/9,5kg per 3.28 ft / 1 meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
IMPORTANT: Always know your load weight for your equipment:
- Manufactured to Exacting Specifications in our Own Factory!
- Tolerance Free Standard Conical Connectors
- Truss Main Tube Wall Thickness of .08in / 2mm
- Load Capacity is 1 Ton (2000 lbs) per unit
- Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
- TUV Certified Aluminium/Steel Welding
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
Standard F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors
Package Contents
- (1) Top Truss Section for Electric Motor or Manual Chain Hoist
- (1) Ground Support Sleeve Block for F34 Truss Segment Systems
- (1) 1.64 Ft - 0.5 M F34 Square Truss Segment | 2 mm Wall
- (1) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
- (4) 3 Ft. Outrigger Brace for Ground Support Truss Tower
- (4) Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
